ANSI Plug Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

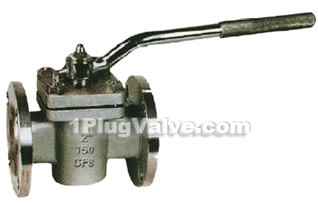

product drawing
ANSI plug valves
Notes:worm gear is included when the diameter is more than 4＂

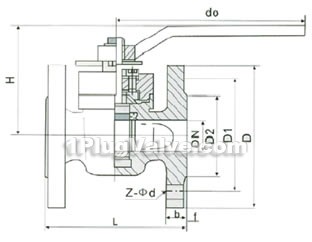

Dimensions & constructral diagram
ANSI plug valve constructral diagram
Operating Standard
| Project | Design | pressure-temperature benchmark | structure length | flange-connection measurement | test and inspection |
| Standard | ANSI B16.34.AP1600 | ANSI B 16.34 | ANSI B 16.10 | ANSI B 16.5 | API598 |
Main Performance Specification
| model | pressure grade （Lb） | test pressure PS(MPa) | Applicable medium | （℃） Applicable temperature（℃）PTFE | ||
| case body | seal (water) | low pressure seal(gas) | ||||
| X41F-150(Lb)C X41F-350(Lb)C X41F-600(Lb)C | 150 | 3.0 | 2.2 | 0.5-0.7 | water,steam,oil etc. | ≤150 |
| 300 | 7.8 | 5.6 | ||||
| 600 | 15.3 | 11.2 | ||||
| X41F-150(Lb)P X41F-350(Lb)P X41F-600(Lb)P | 150 | 3.0 | 2.2 | 0.5-0.7 | Nitrose | ≤150 |
| 300 | 7.8 | 5.6 | ||||
| 600 | 15.3 | 11.2 | ||||
| X41F-150(Lb)R X41F-350(Lb)R X41F-600(Lb)R | 150 | 3.0 | 2.2 | 0.5-0.7 | Nitrose | ≤150 |
| 300 | 7.8 | 5.6 | ||||
| 600 | 15.3 | 11.2 | ||||
Main measurements
| pressure | Nominal diameter DN | Measurements（㎜） | ||||||||
| （ln） | （㎜） | D | D1 | D2 | L | H | do | b-f | z-фd | |
| 150Lb | 1/2 | 15 | 89 | 60.5 | 35 | 108 | 110 | 150 | 12-2 | 4-ф15 |
| 3/4 | 20 | 98 | 70 | 43 | 117 | 115 | 150 | 12-2 | 4-ф15 | |
| 1 | 25 | 108 | 79.5 | 51 | 127 | 115 | 180 | 12-2 | 4-ф15 | |
| 1 1/4 | 32 | 117 | 89 | 64 | 140 | 135 | 270 | 13-2 | 4-ф15 | |
| 1 1/2 | 40 | 127 | 98.5 | 73 | 165 | 140 | 280 | 15-2 | 4-ф15 | |
| 2 | 50 | 152 | 120.5 | 92 | 178 | 150 | 300 | 16-2 | 4-ф19 | |
| 2 1/2 | 65 | 178 | 139.5 | 105 | 190 | 165 | 350 | 18-2 | 4-ф19 | |
| 3 | 80 | 190 | 152.5 | 127 | 203 | 180 | 400 | 19-2 | 4-ф19 | |
| 4 | 100 | 229 | 190.5 | 157 | 229 | 380 | - | 24-2 | 4-ф19 | |
| 5 | 125 | 254 | 216 | 186 | 254 | 460 | - | 25-2 | 8-ф22 | |
| 6 | 150 | 279 | 241.5 | 216 | 267 | 520 | - | 27-2 | 8-ф22 | |
| 8 | 200 | 343 | 298.5 | 270 | 292 | 580 | - | 30-2 | 8-ф22 | |
