ANSI Flange-connection Hard-sealed Lift Plug Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

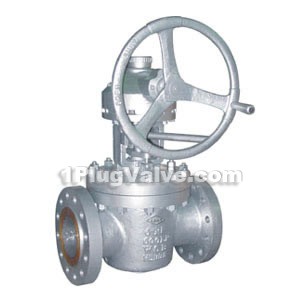

product drawing
ANSI flange-connection hard-sealed lift plug valves
Productions’ structural characteristics
ANSI Flange-connection hard-sealed Lift plug valves is suitable for the petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipe line with nominal pressure CLASS150-1500LBS and operating temperature -29 ~ 550 ℃, cutting off or cutting in pipeline medium.
The main structural features
1, the product is with rational structure, reliable sealing, excellent performance, beautiful modeling;
2, Open and close process of the valve is carried out under the state that the sealing surface is being broken away. So it will not cause damage caused by wear on the sealing surface.
3,With two-way flow, installation is more convenient.
4, Parts materials and flange dimensions can be reasonably choosing and matching based on the actual working conditions or the user request, meeting the needs of a variety of projects.
Working principle of opening and closing the valve
Valves’ open and close process: when open the valve, firstly, revolving the hand wheel to raise the plug and break it away from the sealing surface. And then revolving the handle for 90 ° again, so that the plug channel and the valve body channel interlinked to achieve the purpose of opening. The valve closure process is firstly rotating handle for 90 °, the plug channel and the valve body channel is vertical, and then rotating hand wheel again to achieve the purpose of seal.
Dimensions & constructral diagram
ANSI flange-connection hard-sealed lift plug valve constructral diagram(pic1)
ANSI flange-connection hard-sealed lift plug valve constructral diagram(pic2)
ANSI flange-connection hard-sealed lift plug valve constructral diagram(pic3)
Technical Specifications
| Structural style | BB-BG-OS&Y |
| Drive form | Handwheel, bevel gear, handle |
| Design standard | API599,API6D |
| Structural length | ASME B16.10 |
| Connective flange | ASME B16.10 |
| Test and inspection | API598,API6D |
| Nominal pressure(LB) | Test pressure of case body (MPa) | Sealing test pressure(MPa) | Applicable temperature(℃) | Applicable medium |
| 150 | 3.0 | 2.2 | ≤550℃ | Water,steam,oil etc. |
| 300 | 7.5 | 5.5 | ||
| 600 | 15.0 | 11.0 | ||
| 900 | 22.5 | 16.5 | ||
| 1500 | 37.5 | 27.5 |
Material of Main Parts
| NO. | Name | Material |
| 1 | Valve body | ASTW A216-WCB ASTM A217-WC1、WC6、WC9、C5 ASTM A351-CF8、CF8M、CF3、CF3M |
| 2 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304、F316、F321、F304L、F316L |
| 3 | Gasket | Flexible graphite plus stainless steel |
| 4 | Valve cover | ASTW A216-WCB ASTM A217-WC1、WC6、WC9、C5 ASTM A351-CF8、CF8M、CF3、CF3M |
| 5 | Bolt | ASTM A193-B7, A320-B8 A193-B8M |
| 6 | Six angles nut | ASTM A194-2H, A194-8, A194-8M |
| 7 | Packing | Flexible graphite |
| 8 | Packing gland | ASTW A216-WCB ASTM A217-WC1、WC6、WC9、C5 ASTM A351-CF8、CF8M、CF3、CF3M |
| 9 | Handle | ASTM A216-WCB ASTM A351-CF8、CF8M、 CF3 、CF3M |
| 10 | Valve rod nut | Copper-alloy |
| 11 | Hand wheel | ASTM A536 Gr. 60-40-18 ASTM A216-WCB |
| Model | ZDALX43-150LB | |||||||||||||||
| Pressure grade | 150LB | |||||||||||||||
| Diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight(kg) | 9 | 10 | 11 | 17 | 19 | 23 | 25 | 32 | 55 | 82 | 98 | 130 | 178 | 250 | 380 | |
| Model | ZDALX43-300LB | |||||||||||||||
| Pressure grade | 300LB | |||||||||||||||
| Diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight(kg) | 10 | 12 | 14 | 19 | 21 | 28 | 34 | 39 | 75 | 95 | 135 | 200 | 255 | 415 | 650 | |
| Model | ZDALX43-600LB | |||||||||||||||
| Pressure grade | 600LB | |||||||||||||||
| Diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight(kg) | 13 | 14 | 19 | 23 | 25 | 32 | 40 | 55 | 105 | 139 | 300 | 440 | 730 | 1150 | 1570 | |
| Model | ZDALX43-900LB | |||||||||||||||
| Pressure grade | 900LB | |||||||||||||||
| Diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L | 229 | 229 | 254 | 279 | 305 | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 | |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 | |
| Weight(kg) | 16 | 17 | 26 | 30 | 33 | 39 | 50 | 70 | 137 | 181 | 397 | 590 | 860 | 1470 | 1880 | |
