ANSI Sleeve Soft-sealed Plug Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

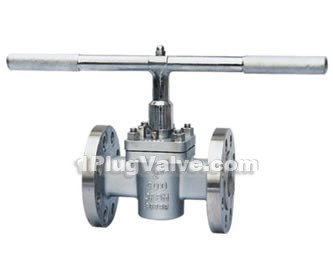

product drawing
ANSI sleeve soft-sealed plug valves
Performance Parameter
Production model： YDAX43
Production diameter：15~350mm
Production pressure：3.0~22.5Mpa
Production material：ASTM A216 WCB ASTM A217-WC1，WC6，WC9，C5 ASTM A351-CF8，CF8M，CF3，CF3M
Structural Features:
ANSI sleeve soft-sealed plug valve is suitable for petroleum, chemical, pharmaceutical, chemical, electric power industries of piping, cutting or connecting medium with nominal pressure CLASS150-900LBS, working temperature for - 29-180 °.
Its main structural characteristics
1, the product structure is with reasonable structure and reliable sealing and excellent performance, beautiful modelling.
2, it is through the sealed surface around the sleeve to realize the sealing. The unique 360 ° metal lip of fixed protection sleeve.
3 The valve does not have cavity for medium to accumulate.
4 The metal lips can provide self-clean when the plug is rotating, suitable for sticky and scaling working condition.
5 two-way direction flow, use and installation is more convenient.
6 The parts material and flange size can meet all kinds of engineering, reasonabley match and choose according to actual conditions or requirements of users.
Dimensions & constructral diagram
ANSI sleeve soft-sealed plug valve constructral diagram(pic1)
ANSI sleeve soft-sealed plug valve constructral diagram(pic2)
ANSI sleeve soft-sealed plug valve constructral diagram(pic3)
technical specifications
| structural style | BC |
| drive model | handle, worm gear and rod drive, pneumatic, moter-driven |
| design standard | API599，API6D |
| structural length | ASME B16.10 |
| connective flange | ASME B16.5 |
| test and inspection | API598.API6D |
Performance Specification
| Nominal pressure (LB) | the test pressure of case body (MPa) | sealing test pressure (MPa) | applicable temperature (℃) | applicable medium |
| 150 | 3.0 | 2.2 | ≤180℃ | water,steam,oil etc. |
| 300 | 7.5 | 5.5 | ||
| 600 | 15.0 | 11.0 | ||
| 900 | 22.5 | 16.5 |
Material of Main parts
| No. | Name | MATERIAL |
| 1 | Valve body | ASTM A216 WCB ASTM A217-WC1，WC6，WC9，C5 ASTM A351-CF8，CF8M，CF3，CF3M |
| 2 | Sleeve | PTFE |
| 3 | Plug | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
| 4 | gasket | flexible graphite plus stainless steel |
| 5 | adjustmental pad | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
| 6 | valve cover | ASTM A216 WCB ASTM A217-WC1，WC6，WC9，C5 ASTM A351-CF8，CF8M，CF3，CF3M |
| 7 | adjustmental bolt | ASTM A193-B7,A320-B8,A193-B8M |
| 8 | six-angled nut | ASTM A194-2H,A194-8,A194-8M |
| 9 | threaded bolt | ASTM A193-B7,A320-B8,A913-B8M |
| 10 | handle | ASTM A105-WCB |
Main connective dimension
| Model | YDAX43-150LB | |||||||||||||||
| pressure grade | 150LB | |||||||||||||||
| diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF | 140 | 152 | 165 | 178 | 190 | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | |
| L-BW | 152 | 178 | 203 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 457 | 521 | 559 | 635 | 762 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 620 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight（kg) | 8.5 | 9.5 | 10.5 | 12 | 14 | 18 | 22 | 26 | 40 | 60 | 70 | 130 | 219 | 381 | 570 | |
| Model | YDAX43-300LB | |||||||||||||||
| pressure grade | 300LB | |||||||||||||||
| diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF | 140 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | |
| L-BW | 152 | 178 | 203 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 394 | 457 | 533 | 610 | 686 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 620 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight（kg) | 9.5 | 10.5 | 12 | 14 | 16 | 20 | 24 | 29 | 53 | 75 | 85 | 185 | 230 | 390 | 550 | |
| Model | YDAX43-600LB | |||||||||||||||
| pressure grade | 600LB | |||||||||||||||
| diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF\BW | 165 | 190 | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 620 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight（kg) | 11 | 13 | 17 | 20 | 23 | 27 | 31 | 36 | 72 | 98 | 141 | 245 | 330 | 515 | 710 | |
| Model | YDAX43-900LB | |||||||||||||||
| pressure grade | 900LB | |||||||||||||||
| diameter | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF\BW | 229 | 229 | 254 | 279 | 305 | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 620 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight（kg) | 13 | 16 | 21 | 24 | 28 | 32 | 40 | 47 | 91 | 117 | 165 | 285 | 420 | 610 | 860 | |
