Flange-connection Fluorine-lined Plug Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
X41F46/F3 Flange-connection Fluorine-lined plug valves
Production characteristics and Usage
FEP (F46), PCTFE (F3) Flange-connection Fluorine-lined Plug Valve applied in -50 ℃ ~ 150 ℃ of various concentrations of aqua regia, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids, strong oxidizing agents, FEP Flange-connection Fluorine-lined Plug Valve also applies to various concentrations of alkali organic solvents and other corrosive gases, and liquid medium pipeline.

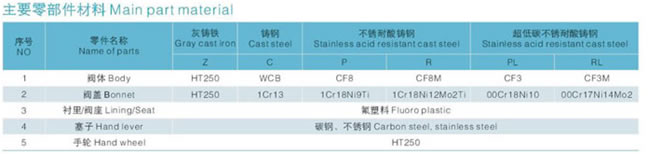

Dimensions & constructral diagram
Flange-connection fluorine-lined plug valve constructral diagram(pic1)
Flange-connection fluorine-lined plug valve constructral diagram(pic2)
